Automatic Crawler High Speed Edge Banding Machine

Automatic Crawler High Speed Edge Banding Machine

• Edge band thickness: 0.4-3mm
• Plate thickness: 10-60mm
• Sheet width: >60mm
• Sheet length: >120mm
• Minimum plate size: 120x80mm
• Belt speed: 20-23-26m/min
• Voltage: 380v(±5%), Customized
• Working air pressure: 0.65kpa
• Total power: 29kw
• Equipment weight: 3600kg
• Overall dimension: 10500x1000x1700mm
• The Automatic Crawler High Speed Edge Banding Machine is specially used for rapidly applying edge banding to large, thick furniture panels and boards.

The Automatic Crawler High Speed Edge Banding Machine is a state-of-the-art solution for efficient and precise edge banding in high-volume panel production. Featuring an advanced automated crawler system, this machine delivers seamless edge application at impressive speeds, ensuring a consistent and professional finish every time. Equipped with intelligent sensor technology, the machine accurately aligns the edge material and applies the perfect amount of glue for a secure bond. Coupled with its robust construction and user-friendly controls, this machine streamlines the edge banding process, boosting productivity and quality while minimizing manual intervention. It is the ideal choice for modern woodworking and furniture manufacturing operations.

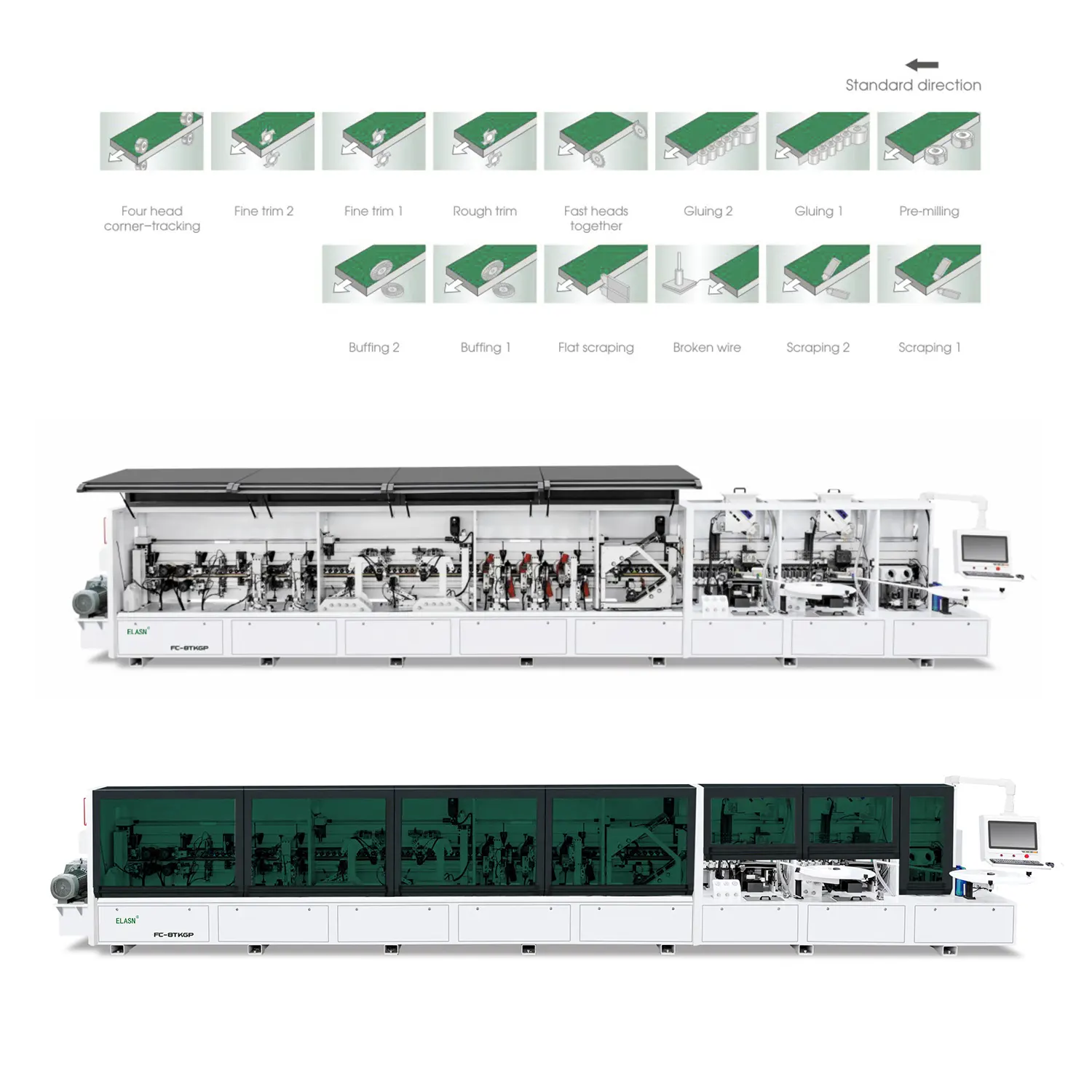

The machine has some steps including:

1 Pre-Milling

2 Gluing 1

3 Gluing 2

4 Fast Heads Together

5 Rough Trim

6 Fine Trim 1

7 Fine Trim 2

8 Four head corner tracking

9 Scraping 1

10 Scraping 2

11  Broken Wire

12 Flat Scraping

13 Buffing 1

14 Buffing 2

High Processing Speed: Capable of applying edge banding at rapid rates, typically 18-23 meters per minute, to boost productivity in furniture manufacturing.

Broad Compatibility: Able to handle a wide range of panel sizes and thicknesses, from 10-60mm thick and 60mm or wider, allowing versatile application.

Robust Construction: Designed with heavy-duty components to withstand continuous operation and provide reliable, long-lasting performance in a manufacturing environment.

1. Furniture Production: Ideal for rapidly applying edge banding to large, thick panels and boards used in the manufacture of furniture items such as cabinets, shelves, tabletops, and other wood-based furniture components.
2. Woodworking Workshops: Suitable for high-volume edge banding requirements in professional woodworking shops and fabrication facilities producing a variety of wood products.
3. Construction Materials: Can be used to edge band large panels and boards utilized in the production of building materials, architectural elements, and other construction-related wood products.
